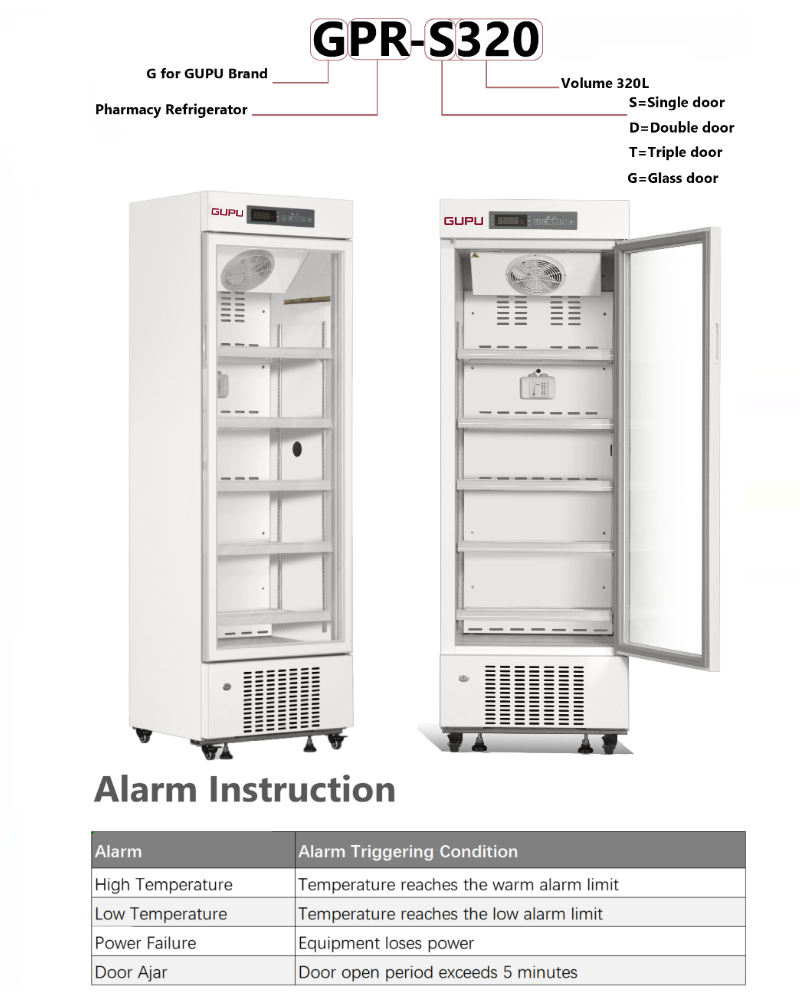

Model | GPR-S75G | GPR-S125G | GPR-S230 | GPR-S320 | GPR-S410 | GPR-D680 | GPR-D1000 | GPR-T1550 |
Size | ||||||||
Capacity(L/cu.ft) | 75\2.11 | 125\4.42 | 230\8.12 | 320\11.12 | 410\14.69 | 680\24 | 1000\35.31 | 1550\54.74 |
Standard Shelf/drawer APS: Anti-corrosion Painted Steel SS: Stainless Steel | APS Shelves/2 | APS Shelves/3 | APS Shelves/4 | APS Shelves/5 | APS Shelves/5 | APS Shelves/10 | APS Shelves/10 | SS Shelves/12 |
Exterior Size(W*D*H)(mm) | 480*450*535 | 500*503*1292 | 580*560*1785 | 640*582*1880 | 780*580*1920 | 1220*642*1885 | 1220*872*1885 | 1800*775*1965 |
Interior Size(W*D*H)(mm) | 400*415*447 | 418*390*761 | 500*420*1090 | 540*425*1380 | 685*429*1380 | 1100*454*1325 | 1100*684*1325 | 1680*640*1420 |
Package Size(W*D*H)(mm) | 555*505*610 | 575*580*1365 | 730*675*1915 | 710*655*1960 | 880*640*2100 | 1335*715*2050 | 1330*940*1970 | 1910*855*2155 |
NT./GT.(kg) | 22/24 | 53/575 | 63/65 | 92.5/100 | 120/133 | 158/188 | 207/237 | 170/190 |
CBM | 0.17 | 0.46 | 0.94 | 0.91 | 1.18 | 1.96 | 2.46 | 3.52 |
Performance | ||||||||
Temperature Range | 2-8℃ | |||||||
Temperature Accuracy | 0.1℃ | |||||||
Temperature Vibration | ±3℃ | |||||||
Climate/ Ambient Temperature | SN (10-32℃) | |||||||
Noise(db) | 50 | 47.5 | 46 | 50 | 50 | 52 | 53 | 55 |
Refrigeration System | ||||||||
Refrigerant | R600a | R600a | R134a | R600a | R600a | R600a | R600a | R134a |
Cooling | Forced-air cooling | |||||||
Defrost | Auto | |||||||
Compressor Brand/Qty | CHINA BRAND/1 | SECOP/1 | ||||||
Insulation | PURF | |||||||
Control System | ||||||||
Temperature Controller | Microprocessor | |||||||
Sensor | NTC | |||||||
Display | Digital LED display | |||||||
Power | ||||||||
Voltage Frequency(V/Hz) | 220V±10%, 50Hz/60Hz; 110V/60Hz | |||||||
Power Consumption(kWh/24h) | 1.2 | 1.65 | 2.56 | 1.64 | 5.75 | 5.75 | 6.23 | 8 |
Power(W) | 87W | 150W | 254W | 226W | 175W | 310 | 310W | 1110W |
Current(A) | 0.62A | 0.8 | 1.15 | 1.03 | 1.26 | 1.7 | 1.75 | 3.8 |
Construction | ||||||||
Inside Material | Anti-corrosion painted steel | Stainless steel | ||||||
Outside Material | Anti-corrosion painted steel | Stainless steel | ||||||
Outer Door Glass (Low-E: Excellent insulation and good light transmission) | 1/Double glazed insulated LOW-E toughened glass doors | 2/Transparent glass door with sealing joint strip with automatic rebound. Heating film prevents frost | 3/Double glazed insulated LOW-E toughened glass doors | |||||
Foot or Caster | Foot | Foot | Caster & Foot | Caster & Foot | Caster & Foot | Caster | Caster | Caster |
Audible and Visual Alarms | ||||||||
High/Low Temperature | Standard | |||||||
Power failure | Standard | |||||||
Thermostat failure | Standard | |||||||
Door ajar | Standard | |||||||
Accessories | ||||||||
Lamp | LED | |||||||
Power failure backup system(alarm) | 8h | |||||||
Door Lock | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 3 |
Test Hole QTY/diameter | 1/25MM | Optional | Optional | 1/25MM | 1/25MM | 1/25MM | 1/25MM | Optional |
USB port | Optional | / | ||||||
Temperature Recorder | Optional | |||||||
Remote alarm port | Optional | |||||||
RS232/485/ port | Optional |
Application:
The pharmacy refrigerators are suitable for refrigeration storage solution drug stores,pharmaceutical companies,hospitals,epidemic prevention centers and clinics.
Features:
* Double-layer glazed insulated LOW-E toughened glass door
* Internal and external is anti-corrosion painted steel
* Standard test hole 25mm
* LED lamp
