1. Smart and clean humanized design
2. Standard USB interface with memory of 200 groups of data.
3. Independent R&D of acquisition chip ensures more stable sampling flow.
4. Sampling amount, sampling time and other parameters are stored in pages.
5. Easy to replace the petri dish by removing the collection port (Petri dish φ90×15)
6. Strict accordance with the new regulations of GMP and Anderson's impact principle
7. Programmable, the sampling volume can be set arbitrarily.

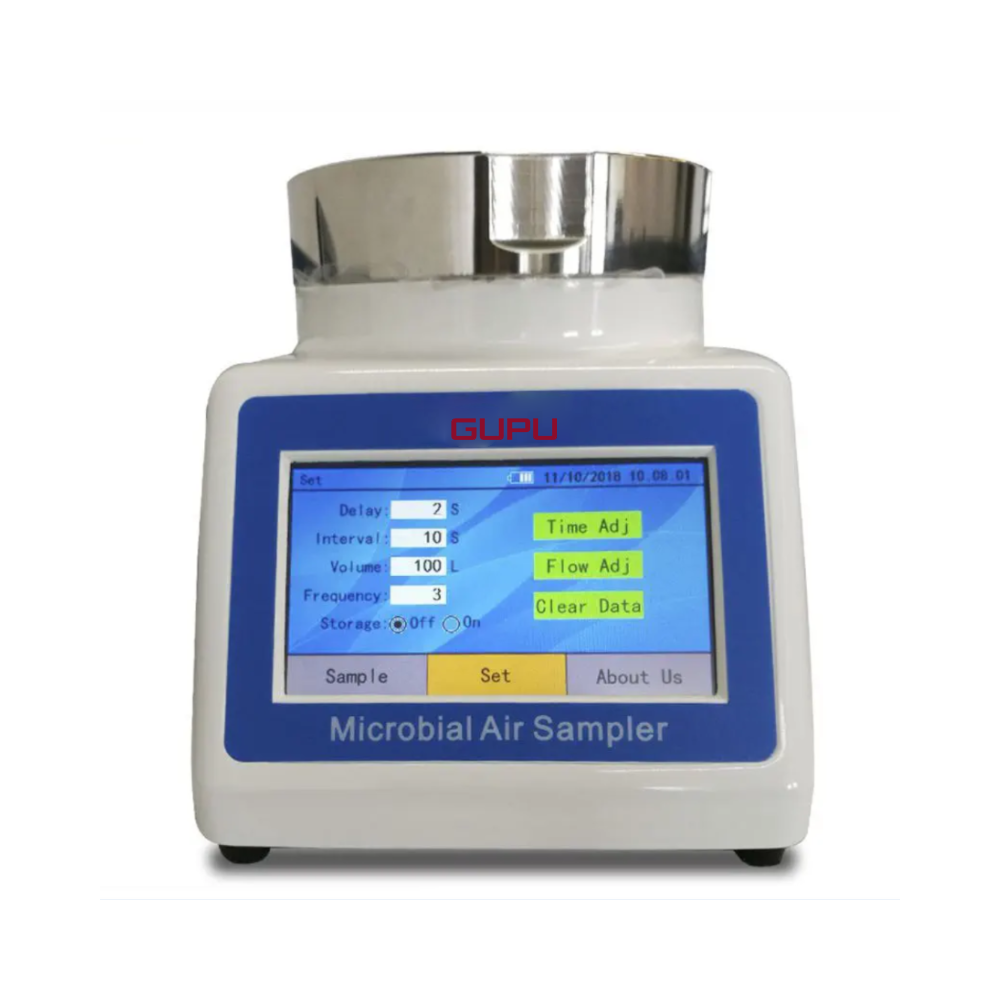

8. 2.2" TFT display of sampling volume, sampling time and other parameters.
9. The sampling head with 397 micro-holes of 0.7mm (straight holes, no chamfers), which reduces bacteria overlap and reduces microbial count errors.
Model | PLANK-S100Pro |
Sampling Flow | 100L/min±2.5% |
Sampling Delay | 0-255S (adjustable) |
Sampling Interval | 0-9999S (adjustable) |
Sampling Volume | 0-9999L (adjustable), Programmable |
Impact Rate | 10.8m/s (Anderson impact level 5 principle) |
Battery Life | 4 hours or more |
Shell Material | ABS engineering plastic |
Sampling Head | SUS316, 397 holes of 0.7mm |
Power Supply | AC220V to DC16.8V |
Accessories | USB interface with storage of 5000 groups data |
Size | 155*190*155mm |
Weight | 2.1Kg |
Executive Standard | ISO 14698-1/2, GB/T 16293-2010 |
Using Environment | Temperature 10-60℃ Relative humidity 10-75%RH Normal atmospheric pressure |
