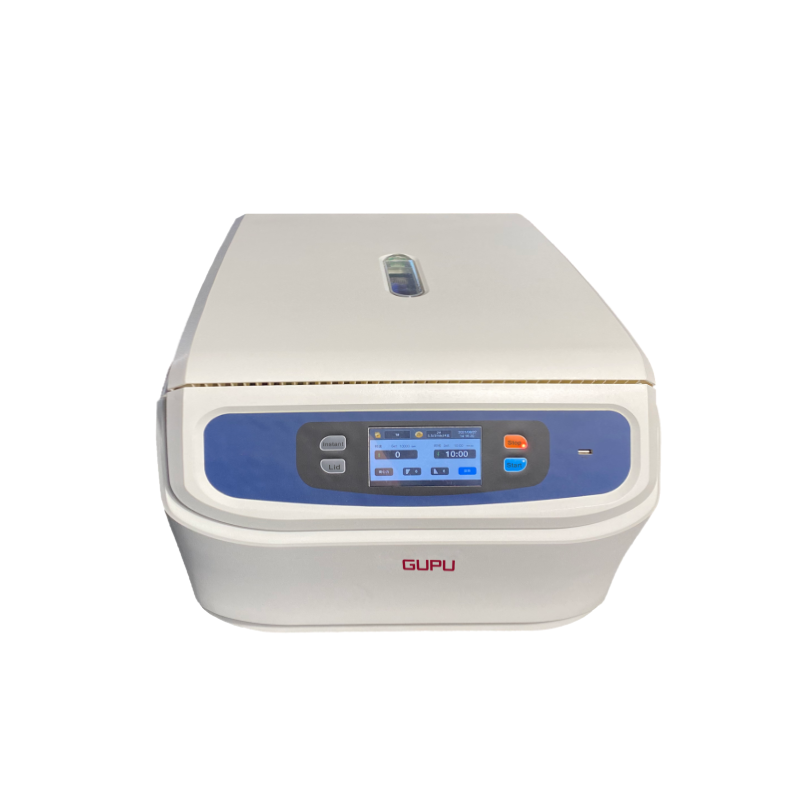

High Speed Centrifuge G1850AS
KEY PERFORMANCE
1Powerful AC frequency conversion motor
2Multiple acceleration/deceleration curves for free selection
3Accurate speed monitoring and auto rotor identification
4HD touchable LCD display with microprocessor controller
5Pulse, Timed and Continuous, Instantaneous centrifugation
SAFETY SYSTEM
1Self-priming lock, manual, automatic and password lid open
2Soft start ensures stable run in acceleration when start-up
3Anti-swing avoids secondary suspension in deceleration when stop
4Autoclavable and corrossion-resistant aluminum alloy angle rotor with tapered hole
CONVENIENCE IN OPERATION
1Automatic RPM/RCF Conversion
2Rotors, baskets and adapters can be customized
3The speed, centrifugal force and time can be adjusted freely during work without stopping
4Operating indicator for remote viewing of centrifuge operating status
ENERGY SAVING
1Special air circulation with filter to decrease aerosol pollution, noise and heat during centrifugation
SPECIFICATIONS
Max. Speed | Angle rotor: 18500r/min; Swing rotor :4000r/min | Power Supply | AC220V, 50HZ |
Deviation | ± 1% | Noise | ≤ 60dB |
Max. RCF | Angle rotor :25000×g; Swing rotor :2860×g | External Material | Cold-rolled steel with anti-baterial powder coating |
Max. Capacity | Angle rotor :100ml×4; Swing rotor :250ml×4 | Cover Material | Cold-rolled steel with anti-baterial powder coating |
Ambient Temperature | Operation Acceptance: 2~40℃; Performance Gurantee: 10~30℃ | Internal Material | 304 Stainless steel |
Display | 4.3" HD touchable LCD, 800×480dpi | Outer Size | 560×440×390mm |
Programmability | 99 programs with 5 step runs | Package Size | 710×590×590mm |
Time Range | 1-99min59s | N.W | 54kg |
Power Consumption | 1000W | G.W. | 69kg |
