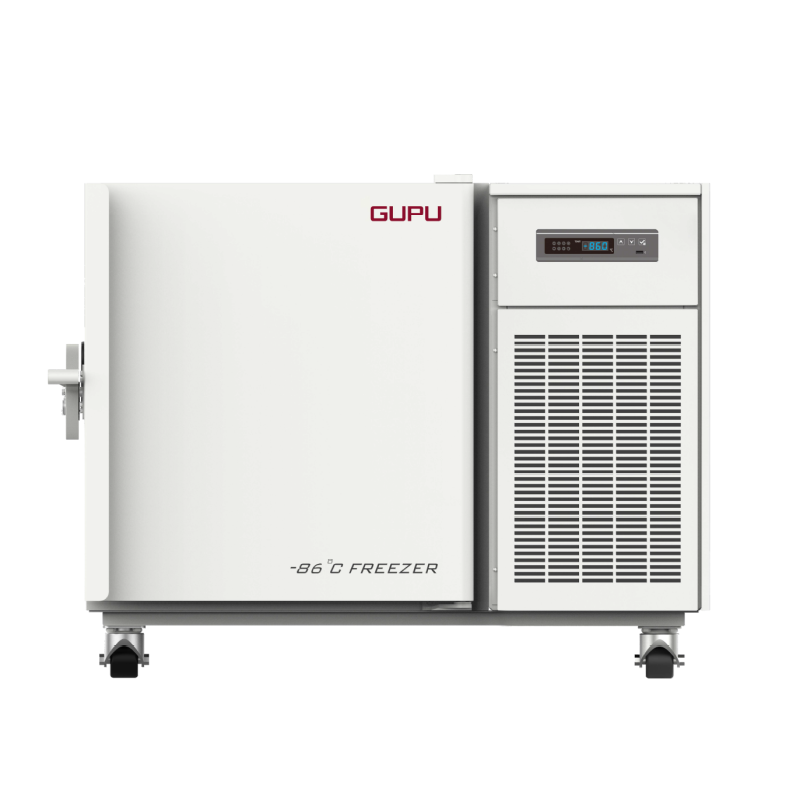

HC Eco-friendly VIP Plus -86℃ Ultra-low Temperemper Freezer 100L
Application
Suitable for use in blood banks, hospitals, health and disease prevention systems, research institutions, colleges & universities, the electronic industry, biological engineering, laboratories in colleges & universities, military enterprises, deep-sea fishing companies, etc.
Precise Temperature Control and Safe Storage
·Microprocessor temperature controller, -40℃~-86℃ can be set freely with display accuracy at 0.1℃.
·Digital temperature display, simultaneously display the chamber temperature, power supply voltage, ambient temperature and other parameters etc. The running status is clearly displayed;
·The high-precision microcomputer temperature control system and platinum resistor temperature sensors enable users to set temperature inside the cabinet within a range from -40℃ to -86℃.
Visual & Audio Alarm system
·High/low temperature alarm, power failure alarm, low battery alarm, door ajar alarm, high ambient temperature alarm, communication failure alarm etc.
Refrigeration System
·The imported high-efficiency compressor and EBM fan are energy-saving and highly efficient;
·The large finned condenser with a space betwee fins≤2mm, providing effective heat dissipation.
·Standard with VIP board for high efficiency cooling performance. Door with hot gas pipe surrounding for defrost.

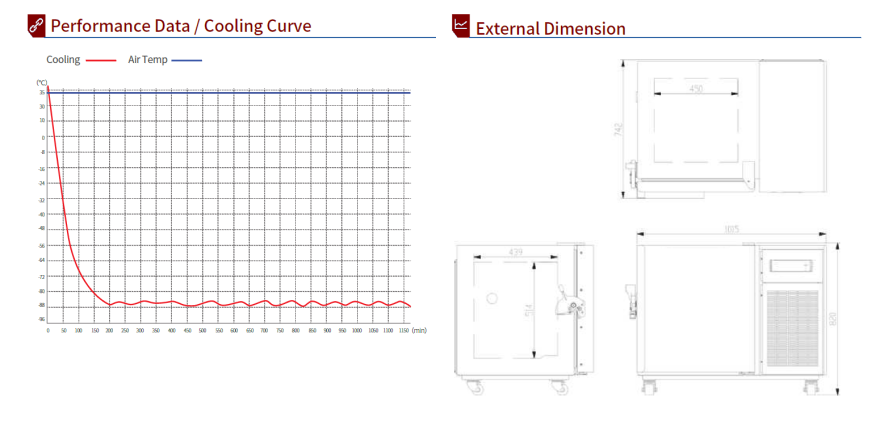

Cooling Performance and Outer Size
Thermal Insulation System
·The two-layer insulated foamed door with double seal and the outdoor insulation design with multiple patents can prevent loss of cooling capacity effectively;
·The six sides of the cabinet are made from high- performance vacuum insulation material, greatly improving thermal insulation performance.
Security System
·The perfect audible & visual alarm system: high/low temperature, sensor failure, door ajar, power failure, low battery etc.;
·The turn-on delay and stopping interval protection can ensure reliable operation;
·The keyboard lock and password protection can prevent any adjustment of operation without permission;
Human-oriented
·The door with new-type assisting door handle to be opened easily;
·Door handle with lock for safety operation.
·304 Stainless steel interior, low temperature resistance anti-corrosion for long service life andeasy cleaning;
·Universal wheels easy for movement and fixation.
Energy-saving & Environmentally Friendly
·Awarded with China Certificate for Energy Conservation Product
·Awarded with China Certificate for Eco-labelling Products
·HC Refrigerant Eco-friendly
SPECIFICATIONS
Model | GUL-86U100HC |
Cabinet Type | Upright |
Capacity(L) | 100 |
Internal Size(W*D*H)mm | 450*439*514 |
External Size(W*D*H)mm | 1066*742*820 |
Package Size(W*D*H)mm | 1200*863*991 |
NW/GW(Kgs) | 145/227(wood packing) |
Performance | |
Temperature Range | -40~-86℃ |
Ambient Temperature | 16-32℃ |
Cooling Performance | -86℃ |
Climate Class | N |
Controller | Microprocessor |
Display | Digital display |
Refrigeration | |
Compressor | 1pc |
Cooling Method | Direct cooling |
Defrost Mode | Manual |
Refrigerant | Mixture gas |
Insulation Thickness(mm) | 90, R:115 |
Construction | |
External Material | Steel plates with spraying |
Inner Material | 304 Stainless steel |
Shelves | 1(stainless steel) |
Door Lock with Key | Yes |
External Lock | Yes |
Access Port | 1pc. Ø 25 mm |
Casters | 4 |
Data Logging/Interval/Recording Time | USB/Record every 10 minute / 2 years |
Backup Battery | Yes |
Alarm | |
Temperature | High/Low temperature,High ambient temperature |
Electrical | Power failure , Low battery |
System | Sensor failure, Condenser overheating alarm, Door ajar, Built-in datalogger, USB failure, Main board communication error |
Electrical | |
Power Supply(V/HZ) | 220-240~/50 |
Power(W) | 804 |
Accessory | |
Standard | RS485,Remote alarm contact |
Options | Chart recorder, CO2 backup system, Printer,RS232 |
