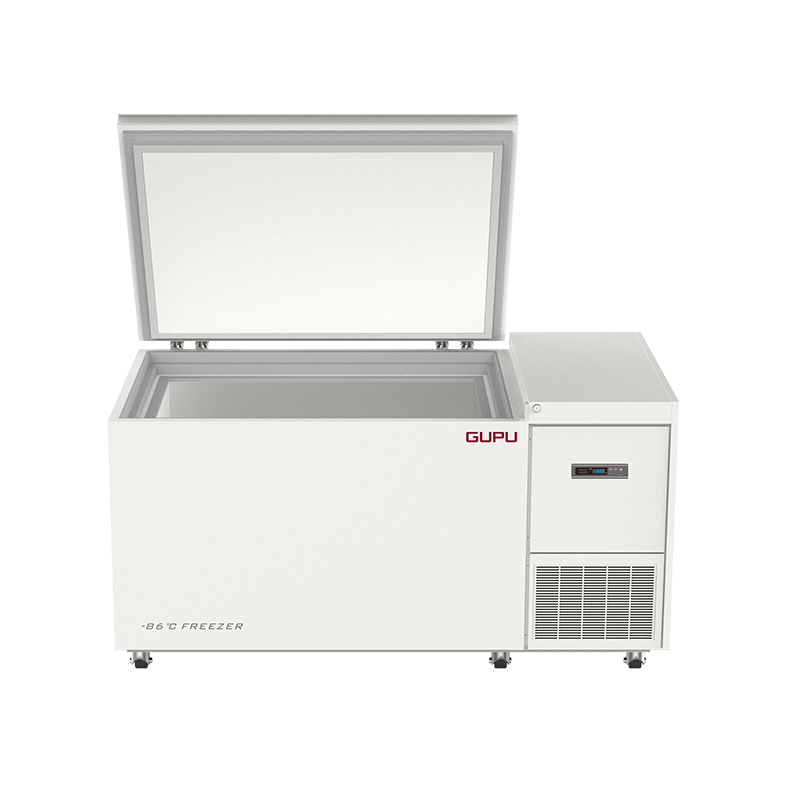

Chest -86℃ ULT Freezer 135L/320L/600L

CERTIFICATES:ISO,CE

WARRANTY:3years

MOQ:1 unit

CHARACTERISTICS

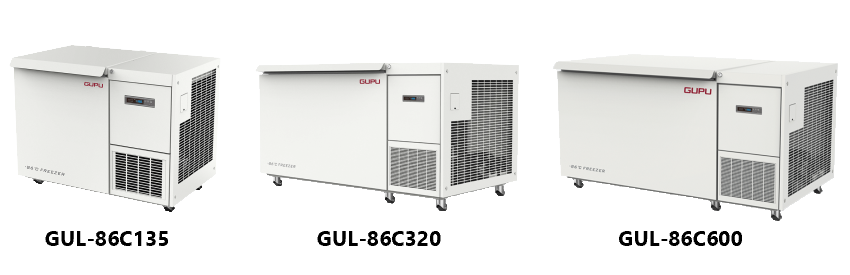

Chest -86℃ ULT Freezer 135L/320L/600L(图1)

-86℃ Ultra-low Temperature Freezer

Targeted Refrigeration • Fast Refrigeration

Energy-saving & Environmentally Friendly

High-precision Temperature Control & Safe Storage

The high-precision microcomputer temperature control system and platinum resistor  temperature sensors can realize more precise temperature control and enable users to  set temperature inside the cabinet within a range from -40 to -86℃.

Well-developed Audible & Visual Alarm System

Multiple alarm functions, such as high temperature/low temperature alarm,  power failure alarm, abnormal voltage alarm, sensor failure alarm, low battery alarm,  alarm of poor heat dissipation of condenser and system failure alarm, can improve  safety of storage.

Refrigeration System

Environmentally-friendly Freon-free refrigerant and high-effiffifficiency compressor  supplied by an international famous brand ensure energy saving and high effiffifficiency; The CFC-free Polyurethane foaming technology, the super-thick thermal insulation layer and VIP:Vacuum Insulation Panel can improve effffect of thermal insulation to a large extent.

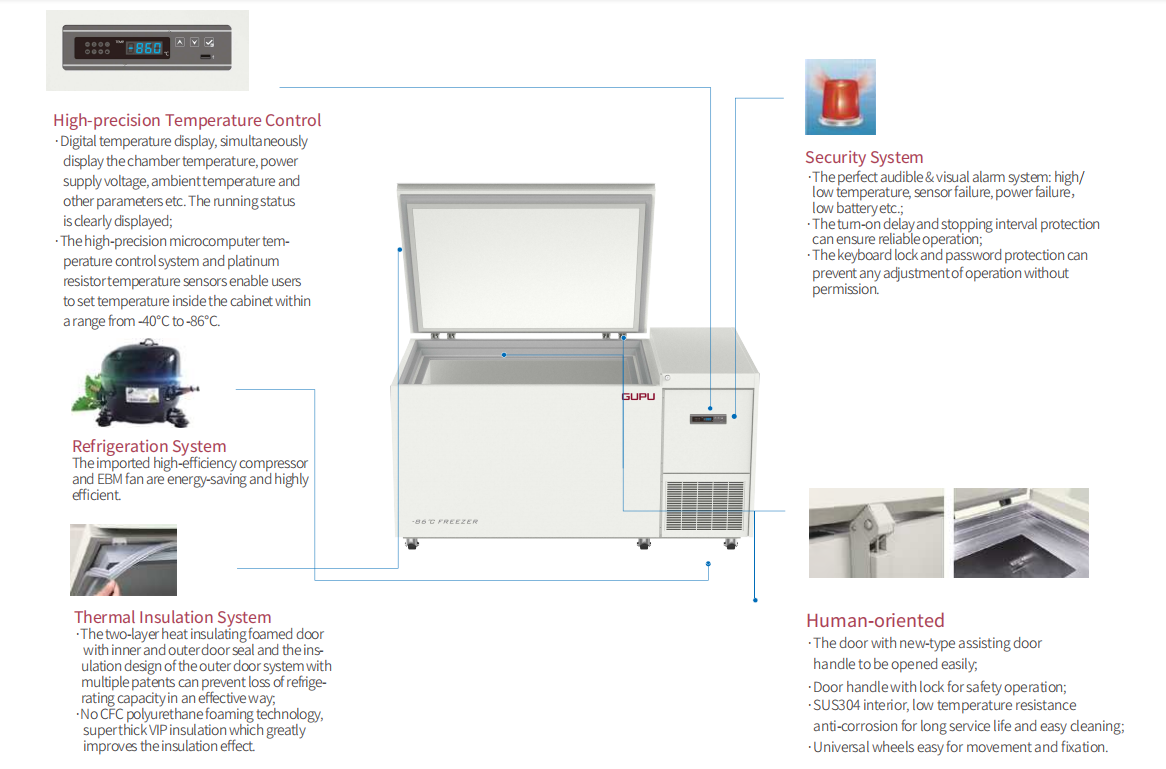

Chest -86℃ ULT Freezer 135L/320L/600L(图2)

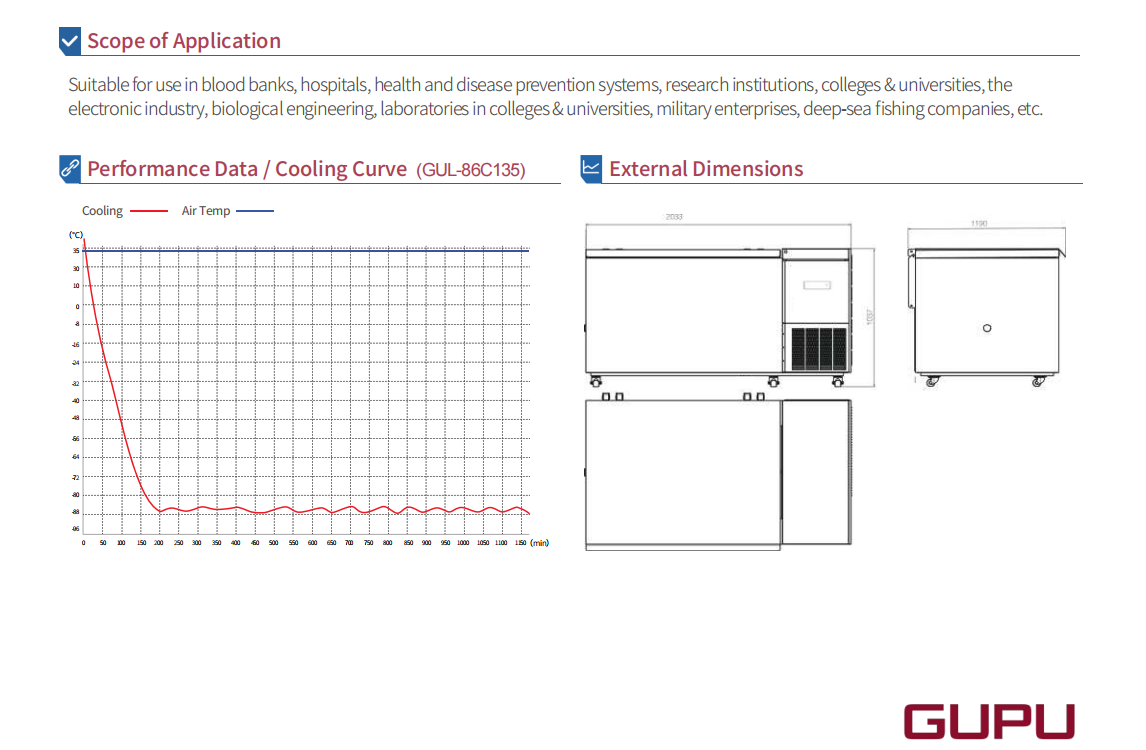

Chest -86℃ ULT Freezer 135L/320L/600L(图3)

DESCRIPTION

ModelGUL-86C135GUL-86C320GUL-86C600
Cabinet TypeChestChestChest
Capacity(L)135320600
Internal Size(W*D*H)mm490*470*5801200*470*5701200*815*610
External Size(W*D*H)mm1320*890*10302030*890*10202033*1190*1037
Package Size(W*D*H)mm1470*990*12412193*1003*12562145*1305*1234
NW/GW(Kgs)200/231280/328352/398
Performance
Temperature Range-40~-86℃-40~-86℃-40~-86℃
Ambient Temperature16-32℃16-32℃16-32℃
Cooling Performance-86℃-86℃-86℃
Climate ClassNNN
ControllerMicroprocessorMicroprocessorMicroprocessor
DisplayDigital displayDigital displayDigital display
Refrigeration
Compressor1pc1pc2pcs
Cooling MethodDirect coolingDirect coolingDirect cooling
Defrost ModeManualManualManual
RefrigerantMixture gasMixture gasMixture gas
Insulation Thickness(mm)152152130
Construction
External MaterialSteel plates with sprayingSteel plates with sprayingSteel plates with spraying
Inner MaterialStainless steelStainless steelStainless steel
External Door1(Steel plates with
      spraying)
1(Steel plates with
      spraying)
1(Steel plates with
      spraying)
Door Lock with KeyYesYesYes
Foaming Lid233
Access Port1pc. Ø 40 mm1pc. Ø 40 mm1pc. Ø 40 mm
Casters466
Data Logging/Interval/
Recording Time
USB/Record every 10 minute / 2 years
Backup BatteryYesYesYes
Alarm
TemperatureHigh/Low temperature,High ambient temperature
ElectricalPower failure , Low battery
SystemSensor failure, Condenser overheating alarm, built-in datalogger USB failure,
Main board communication error
Electrical
Power Supply(V/HZ)220-240~/50220-240~/50220-240~/50
Rated Current(A)5.785.69.5
Accessories
StandardRemote alarm contact,RS485
OptionsChart recorder, CO2 backup system, Printer
