Product Gallery

Portable Mobile -86℃ ULT Freezer

CERTIFICATES:ISO, CE

WARRANTY:3years

MOQ:1unit

CHARACTERISTICS

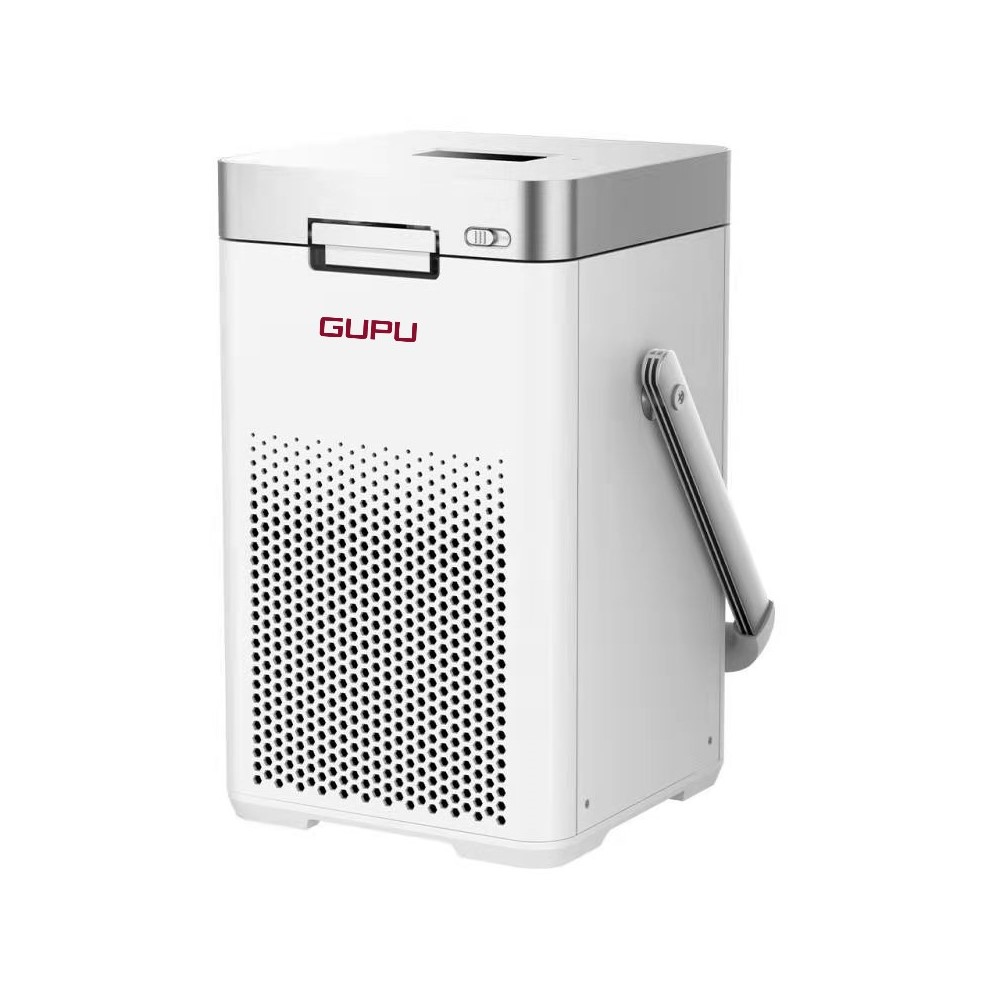

Portable Mobile -86℃ ULT Freezer(图1)

1L internal effective volume, temperature control accuracy ±2℃, ultra-low temperature mobile temperature control safe with adjustable temperature range from -86℃ to 4℃, used to transport vaccines, bacteria and viruses and other biological samples, blood, human organs, immune medical products Wait for goods with extremely high temperature requirements.


Security

Accurate temperature control of ±2℃, avoid temperature fluctuation

WIFI digital IoT module (Standard)

NFC/RFID digital lock (Optional)

4G LTE+GPS module realize the whole process monitoring and alarm (4G service requires a monthly fee)

Refrigerating System

Piston type sterling refrigeration technology, with super fast refrigeration speed, high efficiency and energy saving, maintenance-free life 50000 hrs.



Intelligent Temperature Control & LCD Display

Dual PT100 thermometer sampling 200 times/second

Intelligent learning temperature control algorithm

Intelligent programming mode, program-controlled cooling (Open on Stage mOS version 6, to cooperate with LOTA cloud platform and subsequent OTA upgrade)

Cabinet Design

One-piece high-pressure foam liner, VIP vacuum insulation board,

Double-layer submersible sub-mother door, ultra-low heat leakage,

All-metal integrated liner with proprietary coating

Suitable for 10*10 2ml sample test tube box

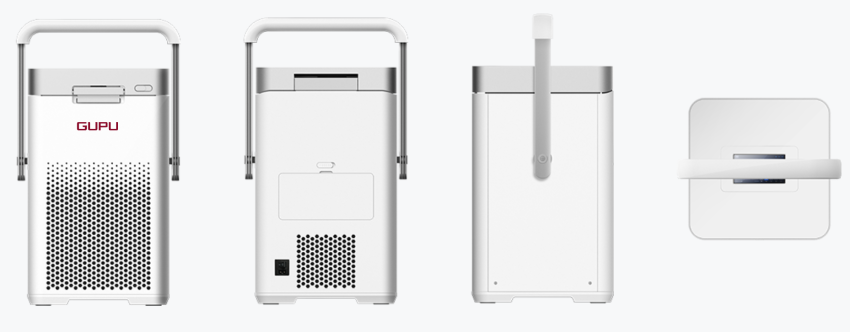

 Portable Mobile -86℃ ULT Freezer(图2)


Mobile Ultra-Low Temperature Freezer Configuration

Basic Package, Including

Modular core machine, car charging cable, 30V 5A DC power supply, standard chassis power cord

Mobile IoT Package, Including

Basic package, 4G module, GPS module (optional)

WIFI Internet Of Things Package, Including

Basic package, WIFI module


DESCRIPTION

Model

CryoST01

External Size (W*D*H)

270x270x450mm

Internal Size (W*D*H)

150x134x545mm

Capacity

1L (100pcs of 1.8ml 45*13.5mm vaccine tube)

Temperature

-86℃ to 4℃

Display

LCD Display

Thermometer

Dual PT100

Max. Consumption

100W

Rated Consumption

80W

Rated voltage

12-30V DC

Power Supply

DC24V, AC110V/240V

N.W./G.W.

13.5KG/16KG

Standard Accessory

External lock, WIFI

Optional Accessory

GPS, Battery, NFC/RFID electric lock

Battery Capacity (optional)

>1hour

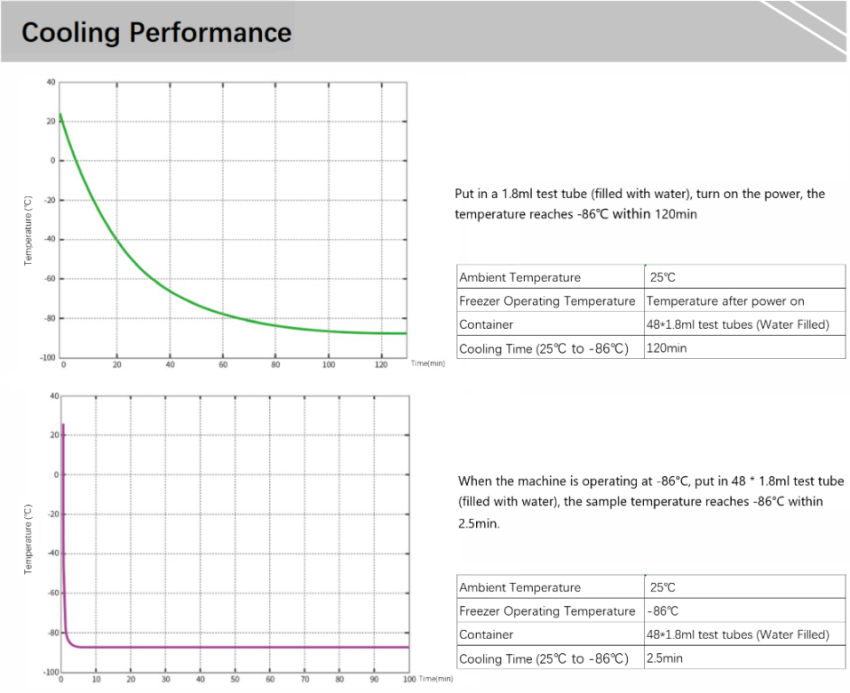

Cooling Performance After Power On
Ambient Temperature 25℃
Freezer Operating TemperatureTemperature after power on
Container48*1.8ml test tubes (Water Filled)
Cooling Time (25℃ to -86℃)120min
Cooling Performance After Freezer Operates at -86℃
Ambient Temperature 25℃
Freezer Operating Temperature-86℃
Container48*1.8ml test tubes (Water Filled)
Cooling Time (25℃ to -86℃)2.5min
